Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

Hy-Tuf Applications & Splines Available
Chevy 8.2 10 bolt… 28 / 33
Chevy 8.5 10 bolt… 28 / 30 / 33
Chevy 12 bolt car… 30 / 33 / 35
Dana 60 *…………… 35 / 40 **
Ford 8.8……………… 28 / 31 / 33 / 35
Ford 9″……………….. 28 / 31 / 33 / 35 (requires 3.250″ bore case) / 40 **
Mopar 8 3/4″ *……… 30 / 35
Olds/Pontiac……….. 31 / 35

* Stock style 2.875″ ID Mopar housing ends require retainer plates- See P1008
** For 40 spline packages- See P1014 / P1016

Notes For This Axle Package
All Chevy & Ford 8.8 require replacement 3.150″ housing ends
Packages with C-clip Eliminator kit for OEM housing ends are shown below

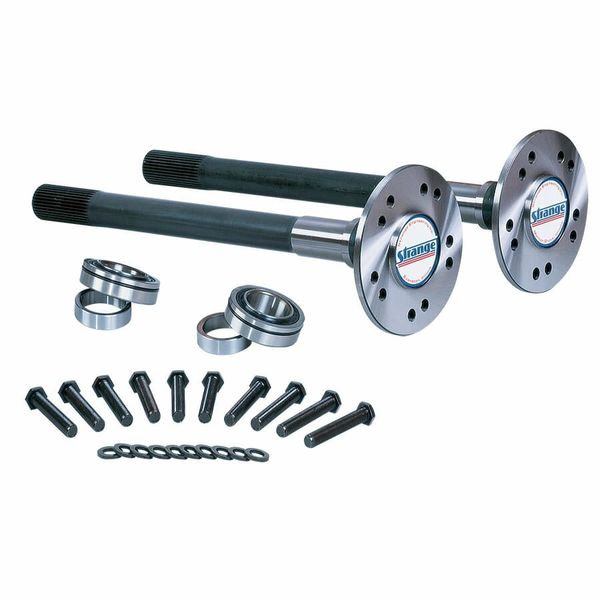

This Pro Race Axle Package Includes:
Hy-Tuf Ultra Strength Axles- A1000
– Forged from low carbon, high manganese, high nickel, and high molybdenum steel
– Majority of machining performed before heat treat to provide consistent hardness
– Thru hardened to Rc 45-48 to maximize the material’s torsional strength
– Finish machined after heat treat to ensure accuracy
– Choice of 28 up to 35 spline
– Lengths up to 34 7/8″
– Choice of bolt circle
– Forged in the USA
– Designed and machined by Strange Engineering

Sealed Ball Bearings- A1019 / A1021 / A1023A
– Low friction bearings designed specifically for Drag Racing
– O.D. grooved for o-ring to eliminate inner axle seal
– Includes o-rings and locking collars

1/2″-20 Screw-in Wheel Studs- A1025 / A1026
– Chrome moly material
– Threads are rolled for maximum strength
– Choice of 2″ or 3″ long studs *
– Includes .060″ hardened washers

* Measured from underneath the hex of the stud

Options
Install axle bearings………………………………….. See A1008
Five 1″ round lightening holes in axle flange… See A1003
Ultra Light flange………………………………………. See A1006
Gun-drill 35 spline axles……………………………. See A1005 / A1005AC

Other Pro Race Axle Packages
With retainer plates… See P1008

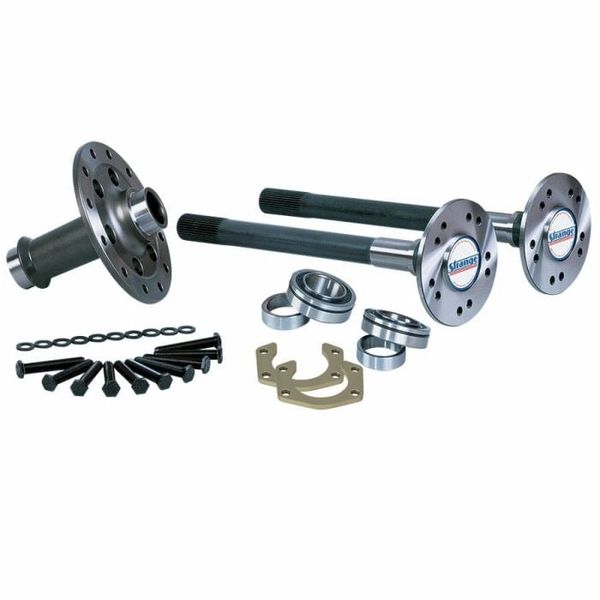

With spool…………….. See P2007
With 5/8″ studs………. See P100758

Pro Race Axle Packages With C-Clip Eliminator Kit
OEM Chevy ends….. See P1011GDR
OEM Ford 8.8 ends… See P1011F86 / P1011F94 / P1011F05

Pro Race 40 spline Axle Packages
Gundrilled…. See P1014
Solid…………. See P1016
With spool…. See P2015 / P2017

Street / Strip / Oval Track Axle Package With Eliminator Kit
OEM Chevy ends………………………………… See P1011GOT

Alloy Street / Track Axle Packages
With 1/2″ studs… See P3102 / P3502
With 5/8″ studs… See P310258 / P350258
With spool……….. See P3102S / P310258S / P3502S / P350258S
