Strange Front Brake Sensor - Hub Mount

Design
Provides front wheel speed information to data acquisition systems
Allows comparisons between front and rear wheel speed
To be mounted on right hand side of vehicle

B4146, B4152, B4184 & B4186 Series Brake Kits
Requires caliper mount with 3/8″-24 hole for sensor
Newer style hub designed to accept trigger wheel – See diagram

Evolution Spindle Mount Brake Kits
Direct Drive Mount has provision for trigger wheel

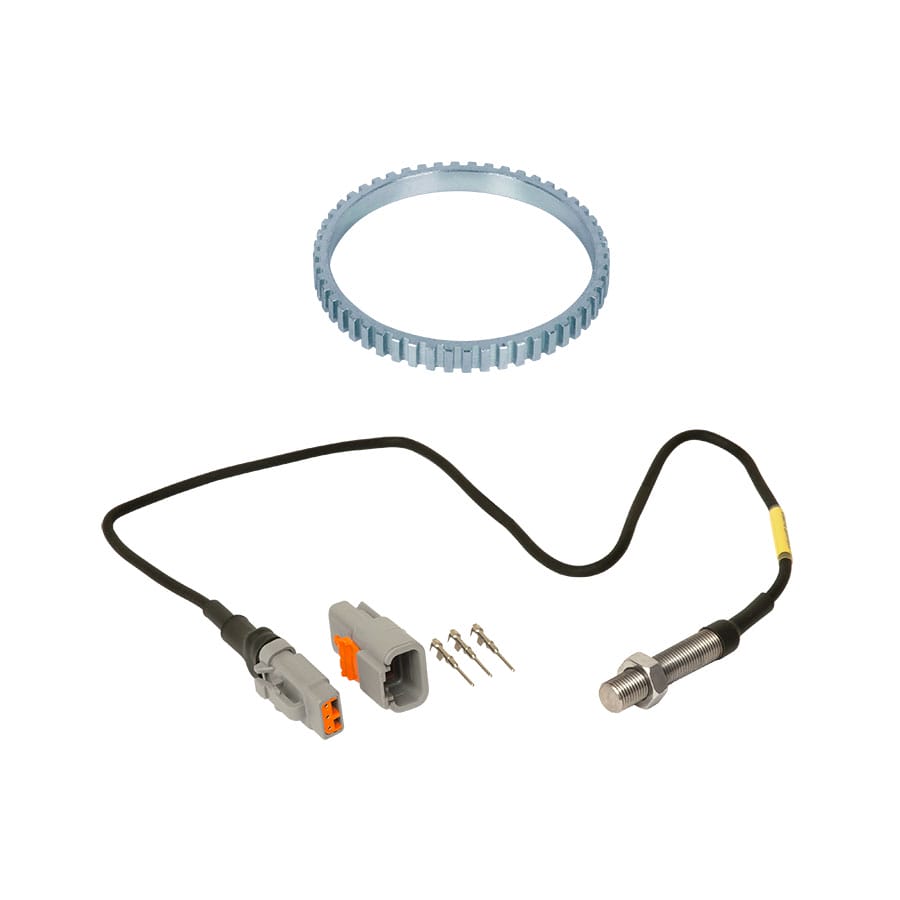

Hall Effect Sensor Assembly
• High precision zero speed design
• Industry standard 3/8″-24 fully threaded body
• Stainless steel housing – more durable than aluminum bodies
• Proven reliability in top fuel cars
• Made in the USA
• Requires 4.5-26 VDC supply voltage
• 0-15kHZ operating frequency
• Terminated with Deutsch DTM plug
• Includes mating Deutsch DTM receptacle & pins

Trigger Wheel
• High resolution 52 tooth trigger wheel
• Plated for corrosion resistance
• Press fit installation
