Strange 9" Center Section

This Center Section May Not Fit Your Housing
Please refer to housing clearance diagram

Includes:

N1912

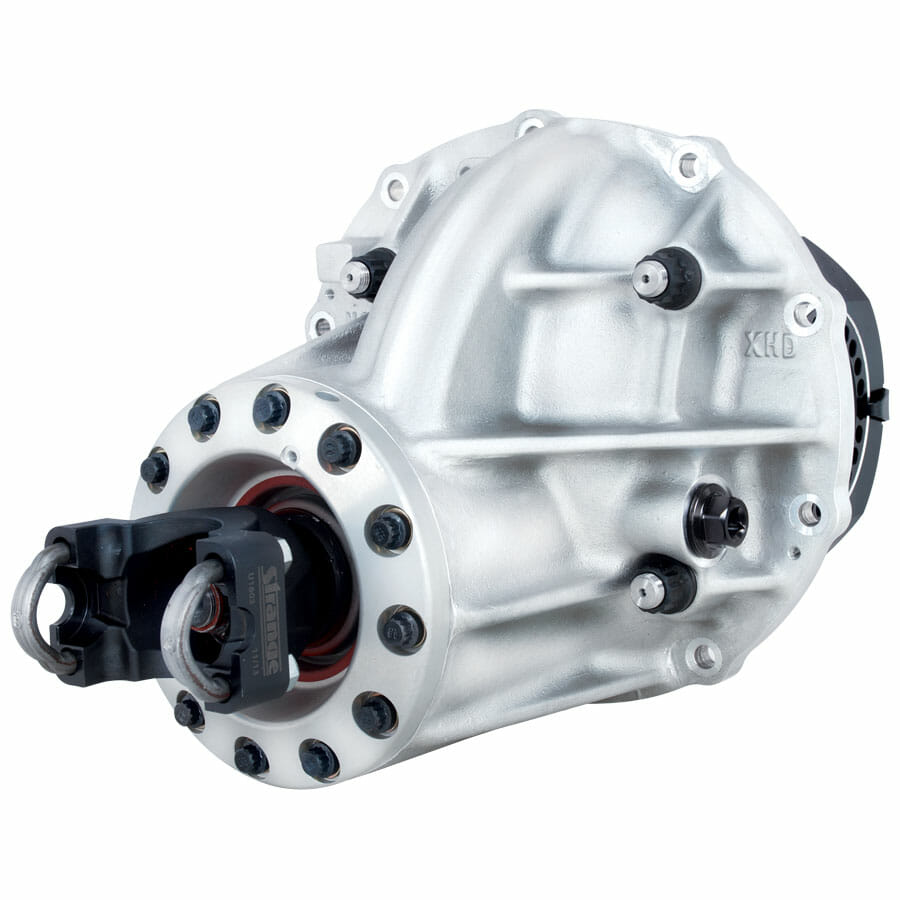

Strange 3.812″ Bore Ultra Case
206-T4 Heat Treated Aluminum Case
Billet Aluminum Main Caps
Solid Steel Adjuster Nuts

N1950A
Billet Aluminum Tapered Bearing Pinion Support
Provisions to accept 5/16″-24 computer sensor – Two locations

D2002
Heavy Duty 40 Spline Lightweight Steel Spool
Bearing journal increased to 2.250″ for additional load capacity

Choice of 4.86-6.50 28 Spline Pro Gear *

* For 3.40-4.86 35 Spline Pro Gear – See PRF225

U1603 & U1610
Chrome Moly 1350 Series Yoke with U-bolts

Professionally Assembled
Timken® Bearings & Races
ARP ring gear bolts
