Billet Drop Spindles - S Chassis

Billet Drop Spindles - By TRZ Motorsports

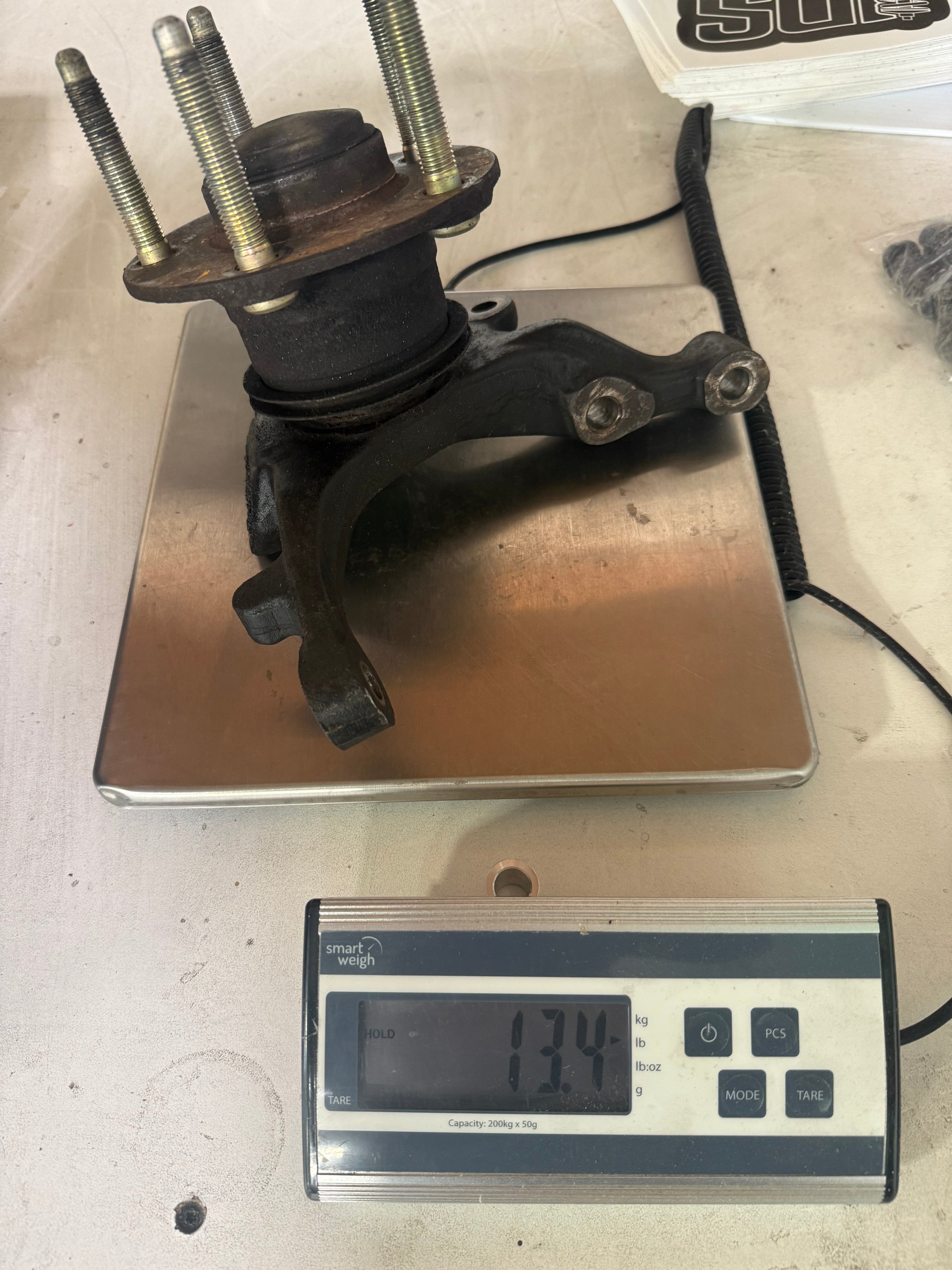

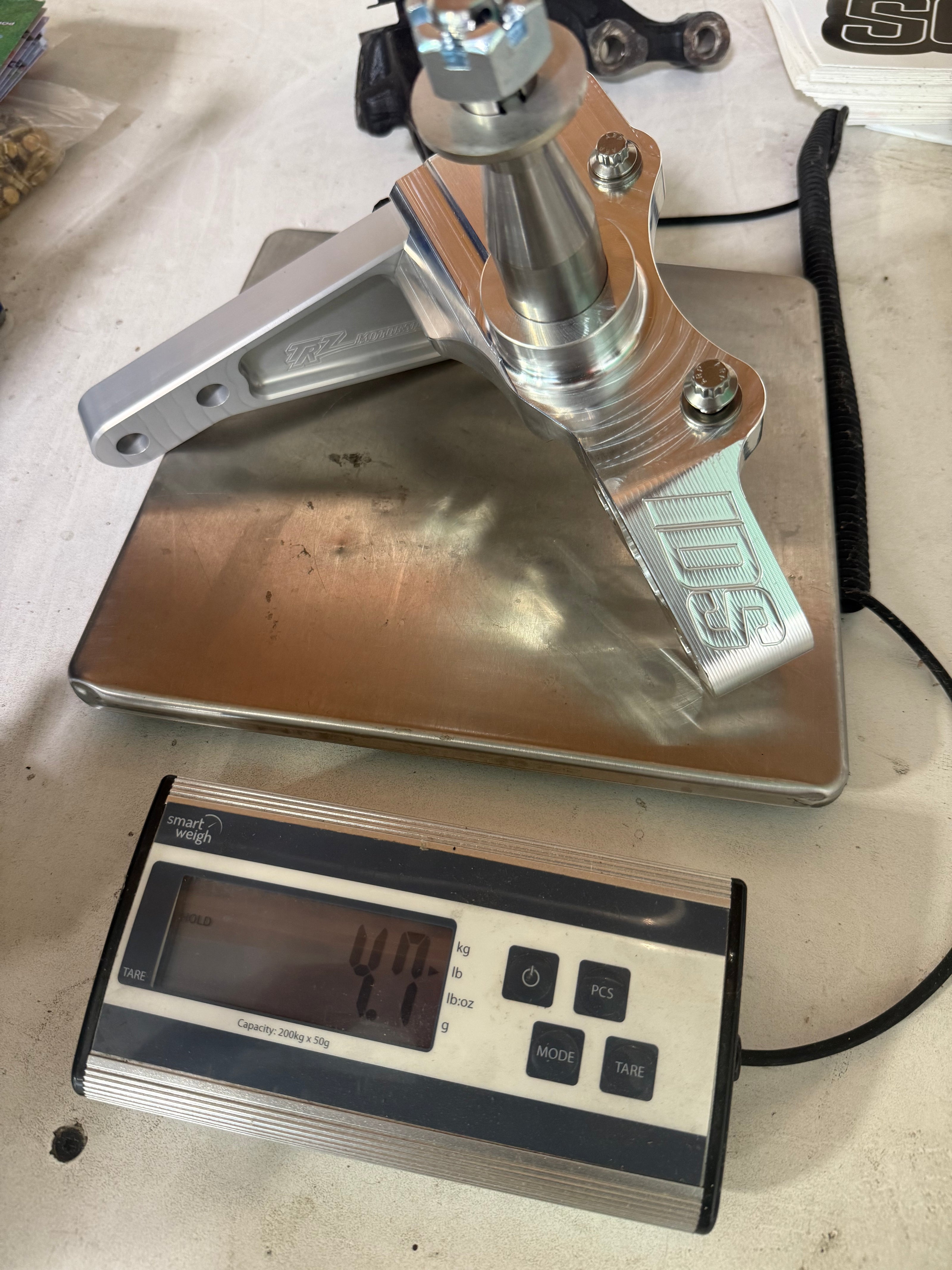

1.5" billet drop spindle for spindle mount wheels, or hub style wheel. This billet spindle weights in at 4.7lbs, compared to the factory knuckle at 13.5lbs. Almost 10lbs savings per side! We designed these to use the factory ball joint. No need for custom lower control arms. These were built to be utilized in a forward or factory style steering rack. Fits IDS struts

• Billet 1.5" Drop Spindle
• Billet Steering arm ( 2 steering adjustments )
• CNC Stainless spindle pins
• Factory ball joint taper
• Spindle Wheel or Hub Options
• SAVES 20lbs from factory spindles *****
• SAVES 60lbs over factory brakes and spindles

 Require aftermarket outer tie rods. For Drag use ONLY

• IDS Bump steer kit available with kit
  • Fits factory steering rack
  • Lightweight billet adjustment sleeve
  • 1/2-20 heim end
  • bump steer adjustments included

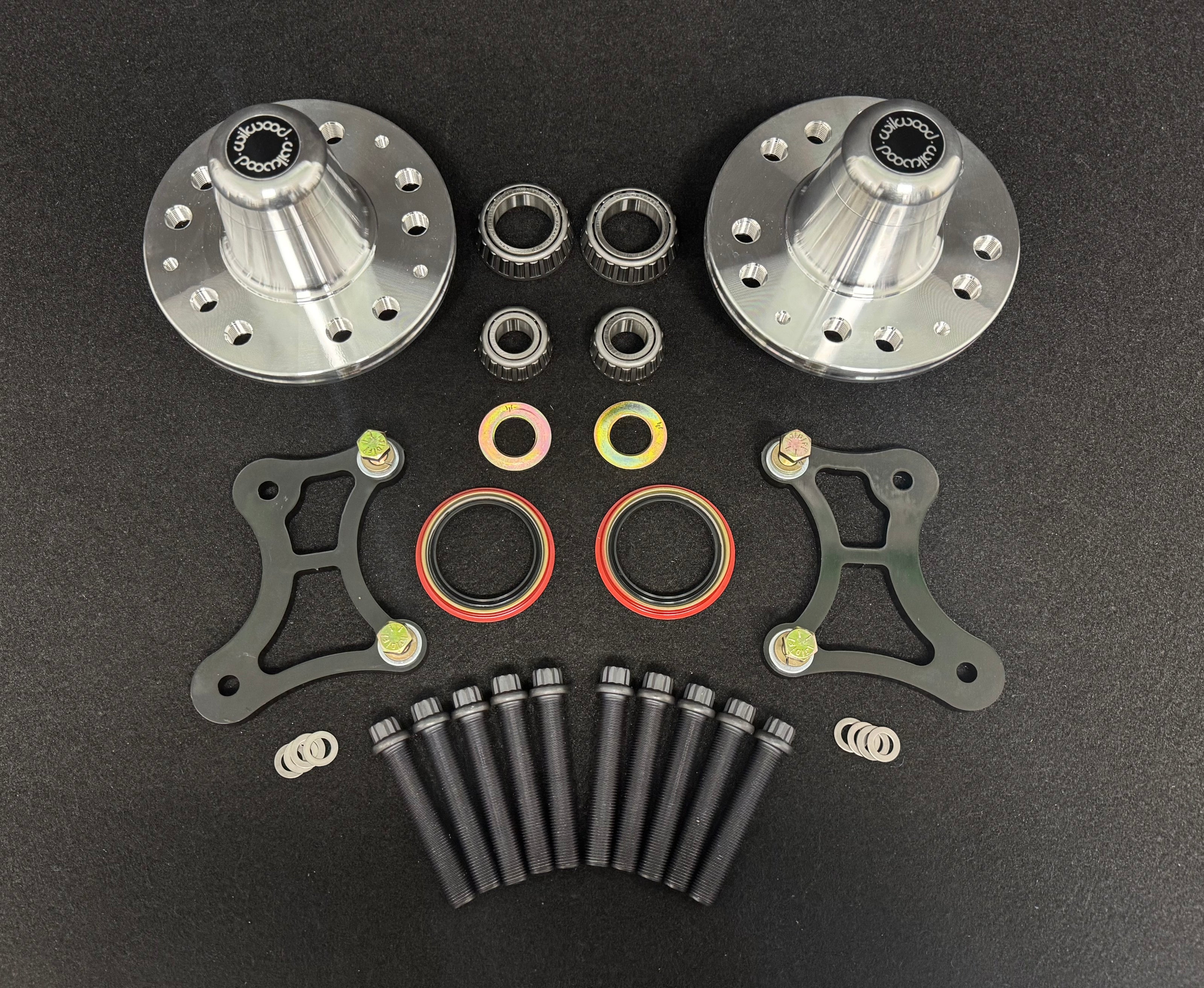

Aftermarket Brakes Required. Can be used with Strange or TBM brakes. Available in brake section. If you have IDS Wilwood front brakes already, select the Wilwood hub kit to adapt your current brake setup!
