Billet Drop Spindles - MKiV Supra

Billet Drop Spindles - By TRZ Motorsports

1.5" billet drop spindle for spindle mount wheels, or hub style wheel. This billet spindle weights in at 4.1lbs, compared to the factory knuckle at 15.7lbs. Over 10lbs savings per side! We designed these to use the factory ball joints. No need for custom lower control arms. These are a 100% bolt in Billet spindle. Spindle mount wheel will narrow the factory track width in .750"!!!

Weight:

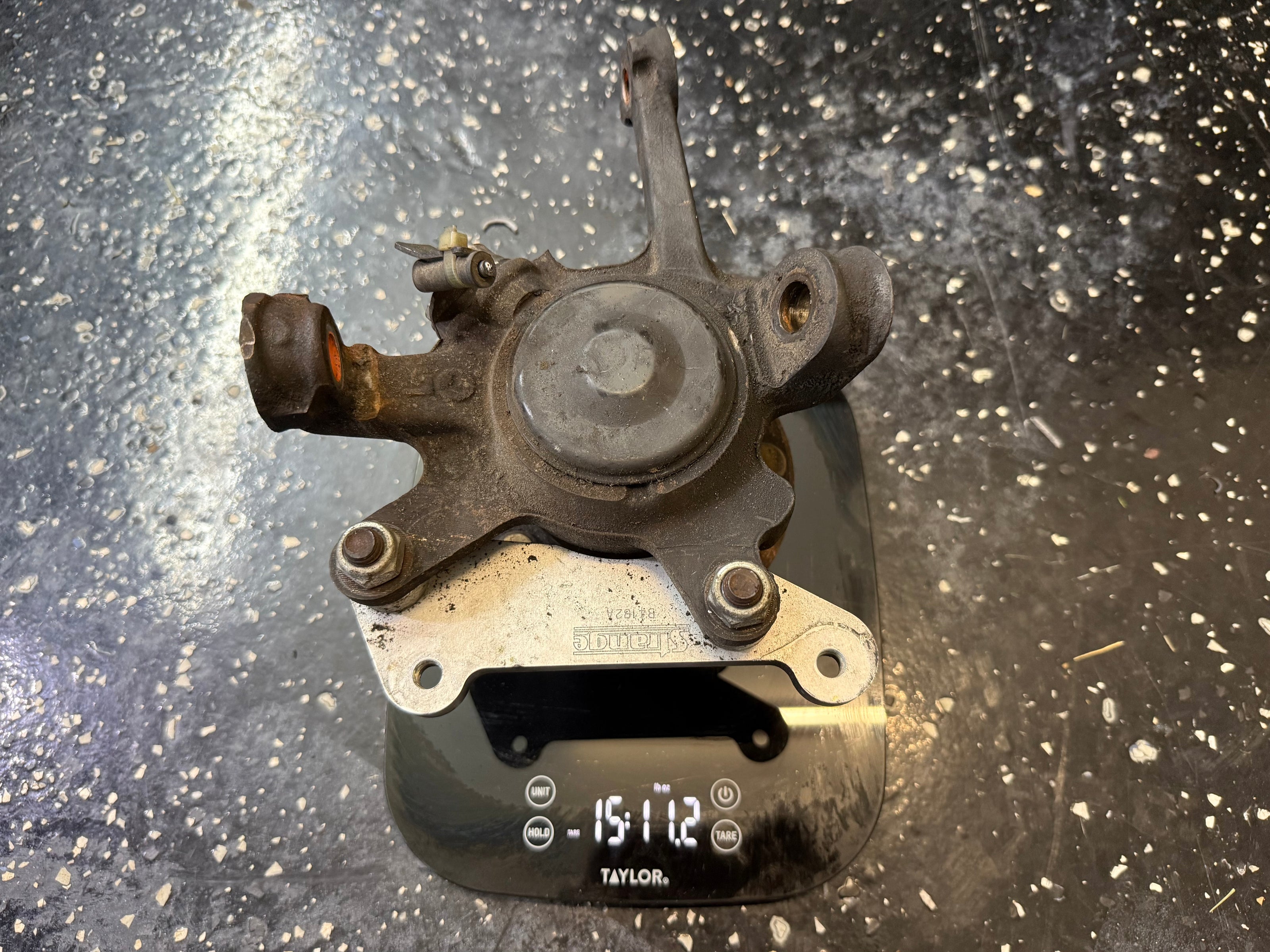

• Stock Spindle - 15lbs 11oz

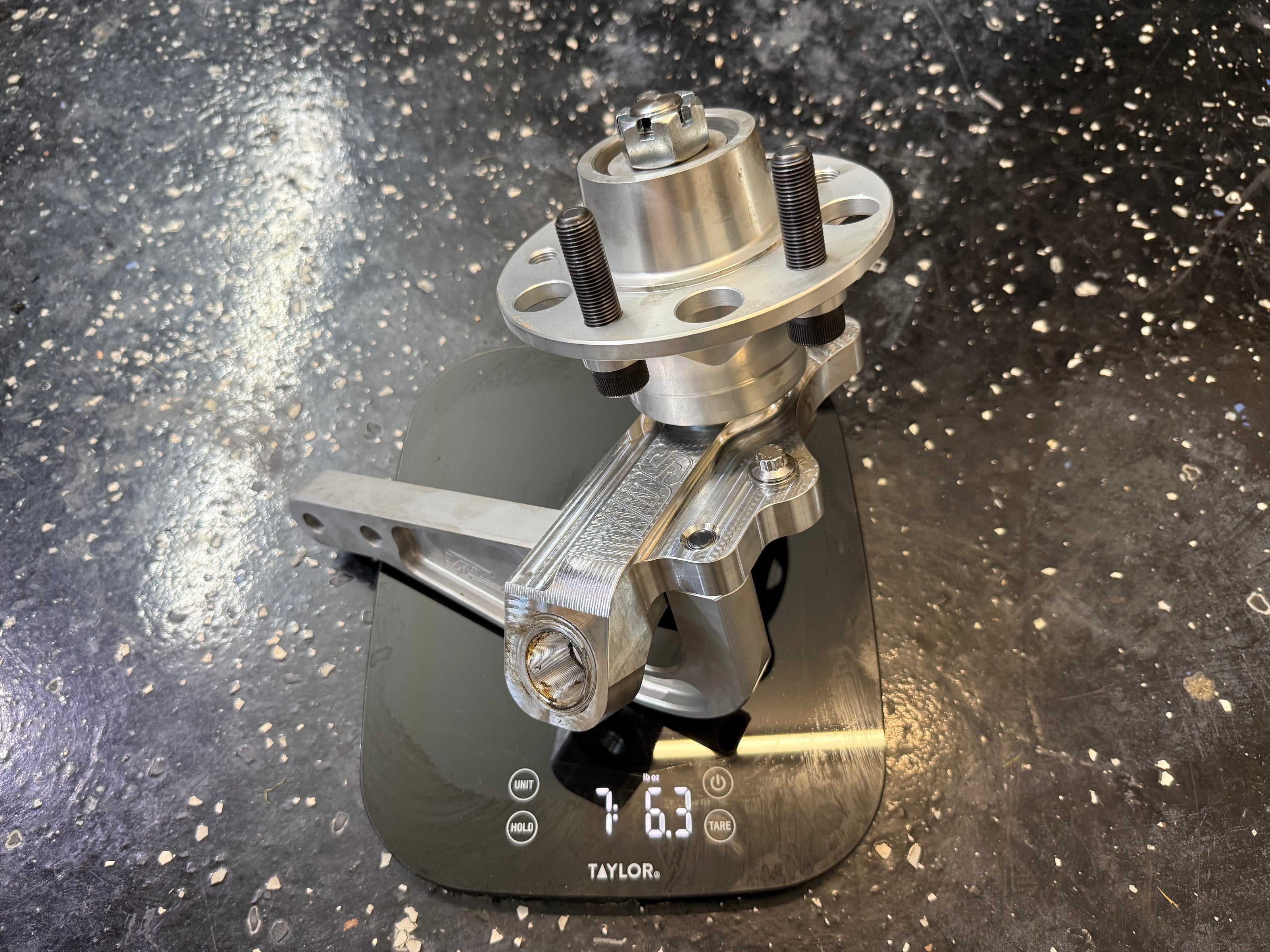

• Billet Spindle Mount - 4lbs 4oz
• Billet Hub Mount - 7lbs 6oz

Kit Comes with:

• Billet Steering arms ( 2 steering adjustments )
• CNC Stainless spindle pins
• Factory ball joint tapers
• Spindle Wheel or Hub Options*
• Aluminum Tie Rod Option*
• SAVES 20lbs from factory spindles*
• SAVES 60lbs over factory brakes and spindles*

 Requires aftermarket outer tie rods made for 1/2" steering arm hole. For Drag use ONLY. Cannot be used with factory front sway bar. Lower shock mount must be flipped 180* to clear steering arm. Aftermarket steering racks may have more turning capability, may require slight clearancing of lower shock mount.

• IDS Bump steer kit available with kit
  • Fits factory steering rack
  • Lightweight billet adjustment sleeve
  • 1/2-20 heim end
  • bump steer adjustments included

Aftermarket Brakes Required. Can be used with Strange or TBM brakes. Available in brake section. If you have Strange Supra brakes currently, you can reuse your current rotor, caliper, and pads. You will not use caliper bracket or rotor spacer.
